Photosynthesis

Photosynthesis is the most fundamental process in plants and some bacteria. It is the single most important physic-biochemical process in the world on which the existence of life on earth depends. It is the ability of plants only, to utilise the solar energy to produce carbon containing organic compound (carbohydrate) from inorganic matter by photosynthesis. Plants produce carbohydrate with the help of light, chlorophyll, water and CO₂, , evolving oxygen. Therefore, plants are producers which produce food for the consumers and not only this; they also produce oxygen at the same time.



The overall process can be simply written as:-



      Light energy

6 CO₂ + 6 H₂O----------------   C₆H₁₂O₆ + 6O₂

                          Chlorophyll

Ruben, Randall and Kamen (1941) demonstrated that isolated chloroplasts evolved oxygen when they were illuminated in the presence of suitable electron acceptor ferricyanide.They demonstrated by experiment that oxygen evolved in photosynthesis comes from water and not from carbon dioxide. They modified this equation on the basis of their experiments using radio labelled oxygen ¹⁸O.They confirmed that when carbon dioxide with isotopic ¹⁸O was given, the oxygen produced in the photosynthesis was not ¹⁸O₂, but when H ¹⁸O was given to the chloroplasts, the oxygen was found labelled with ¹⁸O₂.Therefore, Ruben and Kamen confirmed that oxygen evolved in the photosynthesis comes from water and not from CO₂.

Thus, the overall equation of Photosynthesis was modified as –



     Light energy

6CO₂ + 12H₂O ---------------àC₆H₁₂O₆+ 6H₂O+ 6O₂

                                                                    Chlorophyll

There are requirements of light, chlorophyll, water and carbon dioxide. The solar light energy is received by the chlorophyll, which in turn utilise water and CO₂ and produces carbohydrate.

Blackman (1905) divided the entire process of photosynthesis into two component reactions,termed light and dark reactions. The ability of isolated chloroplasts to carry out both these reactions was shown by Arnon et al. (1954).Therefore, both the reactions take place as given below:-



1.  First that takes place in presence of light, called as Light reaction. This reaction is light dependent and light is utilised by the chlorophyll molecules. As a result of getting light energy, chlorophyll molecules get excited and transfer the excitons to other chlorophyll molecules. Water is being splitted in this reaction to produce oxygen. Besides the production of O₂, in the light reaction ATP and NADPH₂ are also produced, which are called as assimilatory power.

2.  Second reaction does not require light. In this reaction, ATP, NADPH₂ (produced in the light reaction) and CO₂ from the atmosphere are used to synthesize carbohydrate. This reaction is known as dark reaction or Blackman reaction or carbon dioxide fixation pathway or Calvin cycle.



Hill reaction- Robert Hill (1937) and Hill and Scarisbrick (1939)-demonstrated that isolated chloroplasts when exposed to light in presence of water, liberate O₂. Hill observed that if some oxidants (ferric salt / Fe³⁺) were present in the medium, they got reduced to ferrous forms (Fe²⁺).Other compounds, such as ferricyanide, quinines, dichlorophenol indophenols (DCIP) can also be reduced by illuminated chloroplasts. This reaction is called as Hill reaction, and the used oxidants are called as Hill oxidant. In the above reaction water is splitted to liberate O2 in presence of chlorophyll, light and an oxidant. Quantitative studies of Hill reaction confirmed that it was a photochemical oxidation of water.



Light reaction machinery

Photosynthetic apparatus-   The chloroplast

The chloroplasts are known as photosynthetic apparatus, which are the site of photosynthesis. They are the highly ordered complex structure that floats freely in the cytoplasm. Its existence was shown in 1679 by Leeuwenhoek, but it was identified as a separate structure in 1837. Sachs (1862) observed starch grains inside the chloroplasts during photosynthesis and this confirmed its role as seat in photosynthesis. They occur in the cytoplasm of all the green cells of plants except autotrophic prokaryotes .The chloroplasts are small, green, discoid or ellipsoidal .The normal size of chloroplast in higher plants is 4-10μ in diameter and 1-3μ in thickness. The chloroplast is enclosed with a highly permeable outer membrane and a nearly impermeable inner membrane separated by a narrow inters membranous space. The inner membrane encloses the stroma, a concentrated solution of enzymes, including those required for carbohydrate synthesis. A chloroplast usually contains 10-100 grana .Thylakoids membrane arises from invaginations in the inner membrane of developing chloroplasts and therefore resembles mitochondrial cristae. The thylakoids membrane contains protein complexes involved in the harvesting light energy, transporting electrons, and synthesizing ATP. In photosynthetic bacteria, the machinery for the light reactions is located in the plasma membrane, which often forms invaginations or multilamellar structures resembling grana.

Usually they are found in mesophyll cells in the palisade parenchyma and vegetative green cells of lower plants. Shape and size of the chloroplasts greatly vary in algae, where they are found in different shapes such as cup shaped, horse shoe shaped, spiral, reticulate etc. The general structure of chloroplast is a double membrane structure having lamellar structures inside, known as thylakoids. The thylakoid is a single highly folded vesicle, although in most organisms it appears to consist of stacks of disc like sacs named grana, which are interconnected by unstacked stroma lamellae, called stroma lamellae. The lamellae forming the granum are called as granum lamellae. Both the kinds of lamellae show different composition of pigments.

 Photosynthetic pigments- (light absorbing pigments)

Photosynthesis takes place in the visible range of light i.e. from 380 nm to 760 nm wave lengths. This is due to specific light absorption by the photosynthetic pigments.

Chloroplast pigments are responsible for photosynthesis. They absorb light and convert the radiant energy into chemical energy. If chlorophyll solution is placed in the path of visible light, it absorbs blue and red wave lengths of light.In the absorption spectrum these two lights are not seen ,which is represented by dark bands, whereas rest other lights are visible in the absorption spectrum.



Chlorophylls - The principal photoreceptor in photosynthesis is chlorophyll.

Chlorophylls are universally present in plants. Chlorophyll a is found in all oxygen-evolving photosynthetic organisms whereas chlorophyll b is present in higher green plants as well as in two algal phyla, Chlorophyta and Euglenophyta. All photosynthetic bacteria contain bacteriochlorophyll- a except Rhodopseudomonas, which contain chlorophyll b.



Chlorophylls are basically magnesium chelates of closed tetrapyrrole rings(porphyrin head) with a phytol tail.

Chlorophyll a has the chemical formula, C₅₅H₇₂O₅N₄M_g and that of chlorophyll b is C₅₅H₇₀O₆N₄M_g.They have porphyrin head and a phytol tail. It is present in double layer in the chloroplast lamellae. The tetrapyrrole porphyrin head faces the protein portion of the chloroplast lamellae facing outside, while phytol tail is buried in the phospholipid portion of the lamellae. Chlorophyll a absorbs light of maximum 662 nm in red region and 430 nm in the blue region. In plants the maximum absorption peak of chlorophyll a is obtained at 683 nm. Depending upon the maximum absorption peaks viz., 670-673, 680-683, 695-705 nm, a wide range of chlorophylls are recognized. Chlorophyll b im ether solution absorbs maximum at 644 nm in red region and 455 nm in blue region.



Caroteinoids - These are secondary pigments which are present in very low quantity as compared to chlorophylls. They are present in close association of chlorophylls. Most of the caroteinoids are yellow or orange in colour. They are arranged in between the chlorophyll molecules in the thylakoid lamellae. There are two major types of caroteinoids, carotenes and xanthophylls. Both are soluble in organic solvents. There are different types of carotenes: α carotene, β carotene, γ carotene. α carotenes are found in all green plants, β carotene is present in many leaves and certain algae,

whereas γ carotene is present in green sulphur bacteria. Carotenes absorb light of wavelength below 500 nm.

Xanthophylls are oxygenated derivatives of carotenes. They are also of different types such as, lutein, zeaxanthin, violaxanthin and some others.

Phycobilins - These are major pigment constituents in Cyanobacteria (Cyanophyceae/blue green algae) and red algae. These are water soluble and are localised in small granules attached to the lamellae. These are of two types:



(a)  Phycocyanin



(b) Phycoerythrin



Group of Chlorophyll molecules act as a light harvesting antennas. These antenna chlorophylls pass the energy of absorbed photons (units of light) from molecule to molecule until it reaches the photosynthetic reaction centre. The concept of antenna complex was physically observed by Park and Biggins (1964), who called them Quantasomes.

Quantasomes are the hemispherical bodies of about 18X16X10 nm size, present as a monolayer on the lamellae. Each quantasome was found to p contain about 230 chlorophyll molecules (160 chl a and 70 chl b),48 caroteinoids 46 quinone compounds and many other phospholipids, sterols and lipids. They are arranged in highly packed manner in the thylakoid.



Further researches carried by Emerson, indicated that there exist two pigment systems/Photo systems (PS):



Photo system I (PS I) - The light absorbing PS I consists of pigments absorbing at longer wave lengths of light. PS I consists of 200 Chlorophylls,  50 caroteinoids, one molecule of P₇₀₀, one Cyt.f , one Plastocyanin(pc), two Cyt.b ₅₆₃, FRS(ferredoxin reducing substance), one or two membrane bound ferredoxin molecules. It includes major amount of Chl a, lesser amount of Chl b., caroteinoids, xanthophylls and phycobilins. The reaction centre of this PS I is P₇₀₀ (the Chl a molecule which absorbs light of 700 nm).It contains two iron containing proteins similar to ferredoxin, called Fe-S proteins. These are primary electron acceptors of PS I. PS I is active both in red and far red lights. It carries the reduction of NADP⁺. PS I is associated with cyclic electron transport and are located in the stroma lamellae.



The PS I can be defined as a pigment protein complex capable of light induced generation of weak oxidant that can oxidize plastocyanin (a cu containing protein) and a strong reductant,that reduces ferredoxin ( 2Fe-2S containing protein).

Photo system II (PS II) - PS II includes pigments absorbing shorter wave lengths of light- Chl a, Chl b, and caroteinoids. PS II consists of 200 chlorophylls, 50 caroteinoids, a molecule of P₆₈₀ , a primary electron acceptor Q , a plastoquinone (PQ), 4 PQ equivalents, 4 Mn molecules bound to one or more proteins, 2 Cyt b 559, one Cyt b₆, and chloride. It’s Chl a is now called Chl a II. Core complex of PS II consists of P₆₈₀ as its reaction centre, two or more electron donors acting on oxidizing side of complex, an intermediate electron donor (pheophytin) and two bound quinones (Q_A and Q_B) acting as primary and secondary electron acceptors of PS II, respectively.



PS II is concerned with generation of strong oxidant and weak reductant coupled with the release of oxygen. PS II complex is active in far red (beyond 680 nm) light. It carries out evolution of O₂ (photo oxidation of water) and Hill reaction in the presence of Hill oxidants. The PS II is involved in non cyclic electron transport and reduces reaction centre of PS I. The PS II complex is located only in the appressed regions of grana thylakoids.



(1). Photo-physical phase

 This phase actually includes the striking of photons and it’s receiving by the pigment molecule. The normal state of an atom/molecule is known as ground state. When a chlorophyll molecule absorbs a photon, one of its electrons is promoted from its ground state to the excited state. It’s outer valence electron is pushed into a high energy orbit and the molecule comes into excited singlet state. The excited state is unstable having half life of 10 ^̶12 seconds. The electron tends to fall back in one of the several ways. It may release energy in the form of radiation and come to its ground state. This release of energy in the form of light radiation is known as fluorescence. Fluorescence accounts for the dissipation of only 3 to 6 % of the light energy absorbed by living plants. It may come to next higher energy level by losing some of energy in the form of heat. This state is again untenable having half life of 10 ^{̶ 9} seconds, called triplet state. The electro may fall back to ground state from triplet state by losing radiant energy called phosphorescence.

Fig (a)



Fig (b)

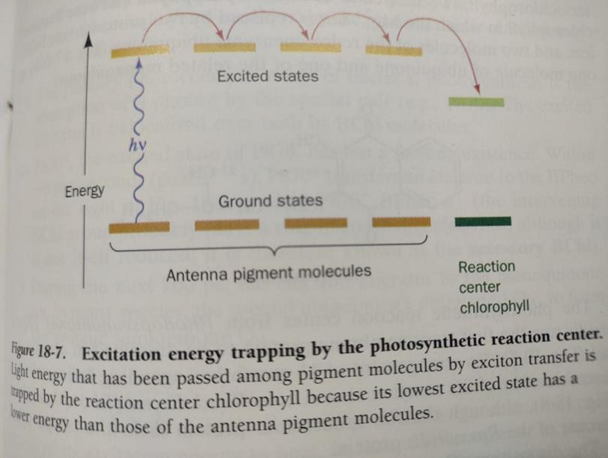

 Fig (a) Energy diagram indicating the electronic states of chlorophyll and their most important modes of interconversion. (b)Excitation energy trapping by the photosynthetic reaction centre.



(courtesy: Fundamentals of Biochemistry ; Voet,Voet and Pratt.John Wiley & sons,Inc)



Transfer of exciton (Resonance energy transfer) - When one molecule gets excited it transfers its energy to the next adjacent chlorophyll molecule and the initial molecule returns to ground state. The molecule which receives energy gets excited and all the process repeats what happened with the first chlorophyll molecule. This process continues till the energy finally reaches the reaction centre (P ₇₀₀ in PS I and P₆₈₀ in PS II). Light energy is funnelled to photosynthetic reaction centres through exciton transfer among antenna pigments. This process is called as Resonance energy transfer.

(2). Photo-chemical phase –



This phase includes generation of assimilatory power consequent upon the transfer of electrons. When photon energy reaches the reaction centres of both the photo systems ,electrons present in the excited states are donated to the respective adjacent receivers.



The first photo-chemical reaction in the photosynthesis is evolution of O₂. This is related with PS II complex. The light energy harvested by the antenna molecules reaches to the reaction centre P ₆₈₀. The P₆₈₀ gets excited and transfer electron to Pheophytin and gets oxidised. P ₆₈₀ returns to normal ground state by pulling electrons from water. Water is splitted by photo oxidation as below:



2H₂O ---------------------à  O₂ + 4 H ⁺ + 4e ^̶



Two molecules of water are oxidized to evolve one molecule of O₂. In this process hydrogen is not produced, rather it is carried by PQ, which reduce NADP⁺.

In the photo oxidation of water (Hill reaction), Mn ⁺⁺ and Cl ^̶ are required.



Both the Photo systems are interconnected through a series of electron carriers, which transfer electrons through them. Transfer of electrons in photo systems takes place in two manners-One is non cyclic electron transport and another is cyclic electron transport.

Non cyclic electron transport & non cyclic photophosphorylation

 Non cyclic electron transport in PS II is coordinated with the ATP generation during the transfer of electrons. Since, the path of electron transport is linear and it produces ATP during the process it is called NON cyclic photophosphorylation.



This involves role of PS II. Steps involved in non cyclic path are as follows:



The reaction centre P₆₈₀ gets excited after receiving light energy from antenna molecules. Its electron is donated to pheophytin –an intermediate electron acceptor. Pheophytin is a modified chlorophyll a molecule in which two H atoms are replaced by central Mg ²⁺.

P ₆₈₀ becomes oxidized by transferring electrons to pheophytin and becomes reduced by receiving electrons from photo oxidation of water via an unknown compound “Z”.

Water is photo oxidized and O₂ is liberated as stated above. The oxygen evolving system involves M (an intermediate compound), Z-an electron donor to P ₆₈₀ , P₆₈₀ and Q the primary acceptor of PS II.



Two molecules of water are photo oxidised, with Mn and Cl ions acting as cofactors of enzyme involved to release one molecule of O_2.  In this step 4 H⁺ and 4 e ^̶ are produced using 4 quanta of light.

The reduced pheophytin then donates its electron to Q _A, which is a bound quinone in the thylakoid.



The reduced Q _A transfer electrons to Q _B and reduces it. Q _B is 2 electron acceptor which is reduced by taking 2 electrons in two steps. It is a non pigmented protein which exhibits plastoquinone- Plastocyanin-oxido reductase activity.

The reduced Q _B^{2 ̶} then transfers its two electrons to PQ which also takes 2H⁺ from the medium (outside the thylakoid). PQ is reduced to PQH₂ by taking 2e ^̶  from Q _B ^̶  and 2H ⁺ from the medium.

The PQH₂ transfers its electrons to Cyt f of Cyt b₆—f complex and releases protons (H ⁺) to the inner side of the thylakoid membrane. The PQH₂ gets oxidized to PQ and Cyt f is reduced.



Now, the reduced Cyt f transfers its electron to Plastocyanin (a copper containing protein; PC). The Cyt f is oxidized and PC is reduced.

PS I –Complex



In the photo system I the radiant energy is harvested by its antenna complex and the excitons are finally transferred to its reaction centre P₇₀₀. As a result P ₇₀₀ gets excited and gives its electron to an unknown compound A ₁. P ₇₀₀ gets oxidized which is reduced by electrons donated by PC.



The reduced A ₁ passes its electron to primary electron acceptor PSI-A ₂ ,a protein with Fe-S centre. The reduced A₂ then transfers its electron to secondary electron acceptor PSI-A ₃, an unknown compound.



The reduced A ₃ then transfers its electron to ferredoxin ( Fd ) present at the outer surface of thylakoid membrane. As a result ferredoxin is reduced and A ₃ is oxidized.

The reduced ferredoxin finally transfers its electron to NADP ⁺, which receives protons( H ⁺) from the medium and gets reduced to NADPH. This reaction is catalyzed by an enzyme Fd-NADP reductase.



Ferredoxin + NADP ⁺ + H ⁺----------Fd-NADP reductase--àFerredoxin (ox.) + NADPH



Significance: Non cyclic electron transport is a linear sequence of electron transfer where NADP⁺ is reduced by PS I complex. The PSI is reduced by PS II and ultimately PS II is reduced by electrons coming from photo-oxidation of water. Since the path of electron is linear, this is called non cyclic .



It releases considerable number of protons (H ⁺) which generates proton motive force to produce ATP. Hence, the non cyclic electron transport is referred to as non cyclic photophosphorylation.

PS I is the producer of assimilatory power, i.e., NADPH and ATP.

     Fig. Non cyclic and cyclic electro transport system (Z scheme)



Courtesy: Fundamentals of Biochemistry; Voet, Voet & Pratt.



Cyclic electron transport & cyclic photophosphorylation-



In addition to non cyclic ETS in plants, there exists cyclic electron transport in certain conditions. When there is paucity of CO₂ in chloroplast and NADPH starts accumulating, cyclic ETS is favoured in addition to the Non cyclic one. The purpose of cyclic photophosphorylation is more production of ATP.

In this condition, electrons released by P ₇₀₀ are cycled back to PS I via a series of intermediate electron carriers, therefore this is called cyclic ETS. Since, ATP is also generated in this process, it is referred to as cyclic photophosphorylation.



Following steps are involved in the cyclic ETS:



1.  The antenna chlorophyll molecules receive light energy and get excited, which transfer their exciton to the reaction centre P₇₀₀. The P₇₀₀ gets excited and transfer its electron to ferredoxin reducing it via intermediate carriers A₁(Chl a), A₂(Fe-S), and A₃ (P₄₃₀).



2.  The reduced ferredoxin, unable to reduce NADP ⁺, passes its electron to PQ via Cyt _{b 6} (Cyt _{b 563}).



3.  The reduced Cyt _{b 6} transfers its electron to PQ. The PQ is a hydrogen carrier which gets electrons from Cyt _{b 6} (in cyclic electron transport) and Q _B (in non cyclic ETS) and protons H ⁺ from the outer medium to get reduced to PQH₂.



4.    The PQH₂ transfers its electrons to Cyt f and 2H⁺ to the inner side of thylakoid membrane.



5.    The reduced Cyt transfers its electron to Plastocyanin (PC).The PC gets reduced and Cyt f

becomes oxidized.



6.    The reduced PC moves and donates its electron to oxidised reaction centre of PS I (P₇₀₀).

Fig. Cyclic electron transport system in photosynthesis. (Courtesy: Plant Physiology; H.N.Srivastava)

Fig. Non cyclic and cyclic ETS (Combined) showing phosphorylation and NADPH production.
